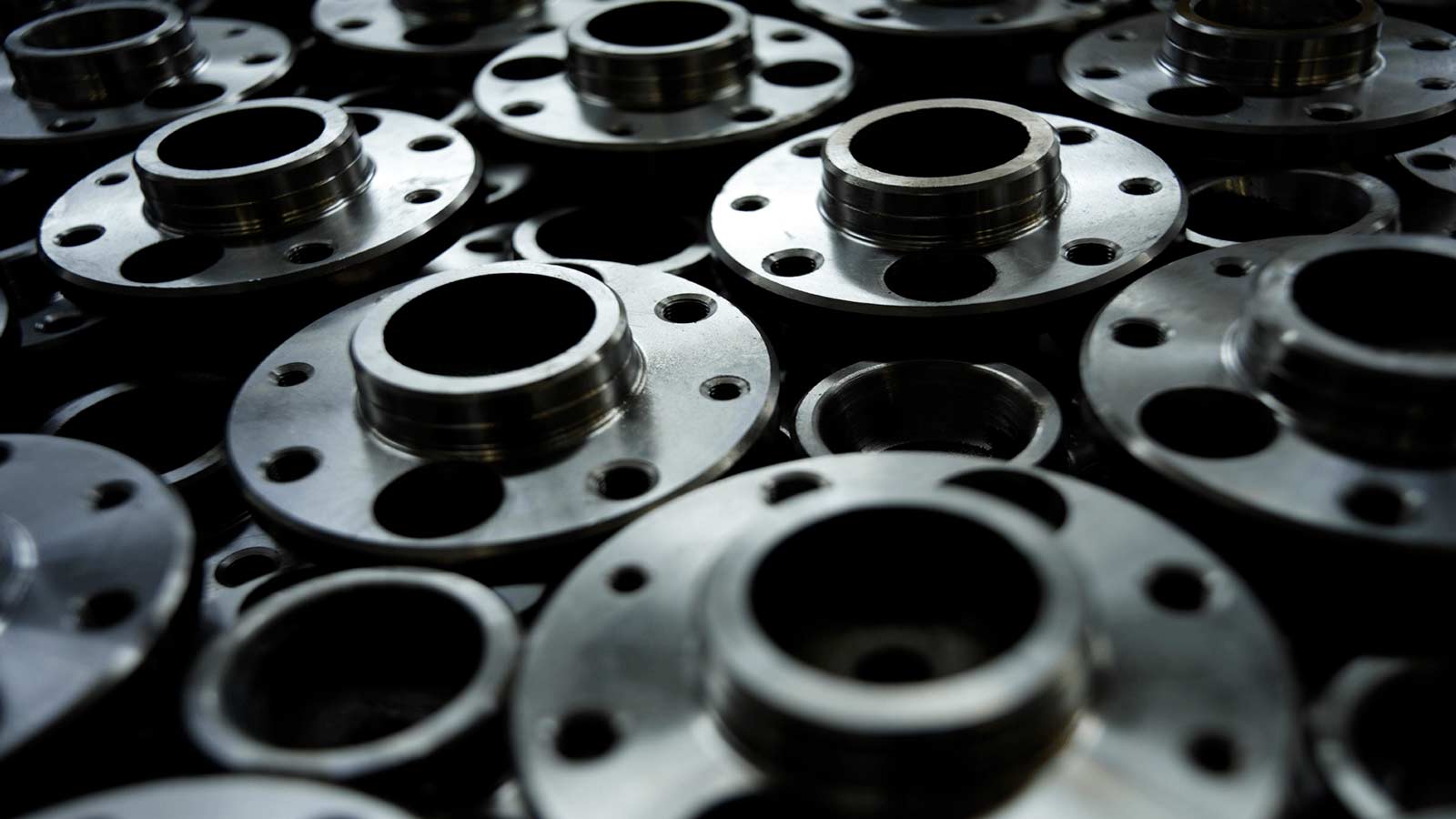

Flanges

Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers.

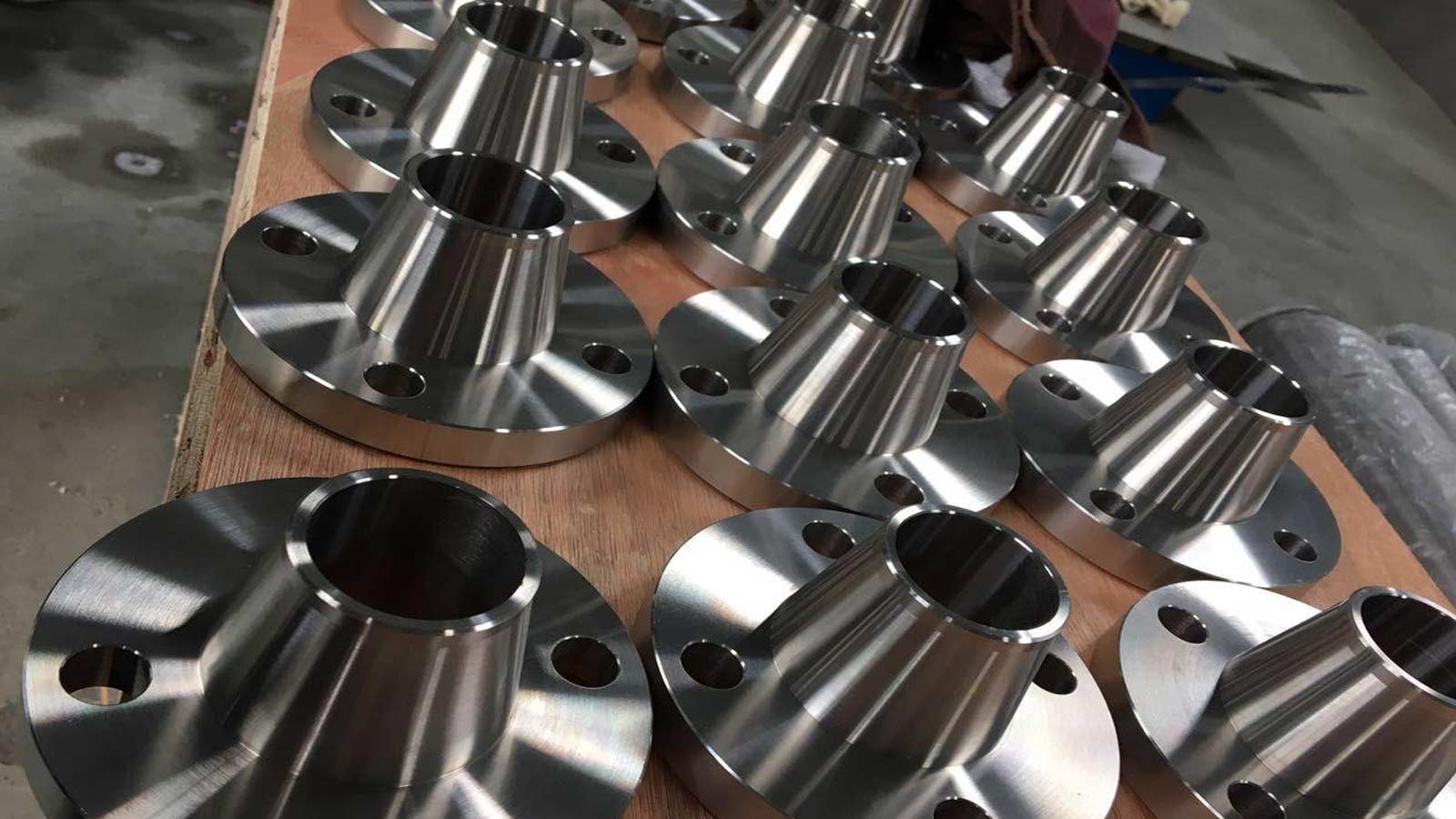

Stainless & Duplex Steel
Stainless & Duplex Steel flangesRange :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss.
Stainless Steel :
ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H .
Duplex Steel :
ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.

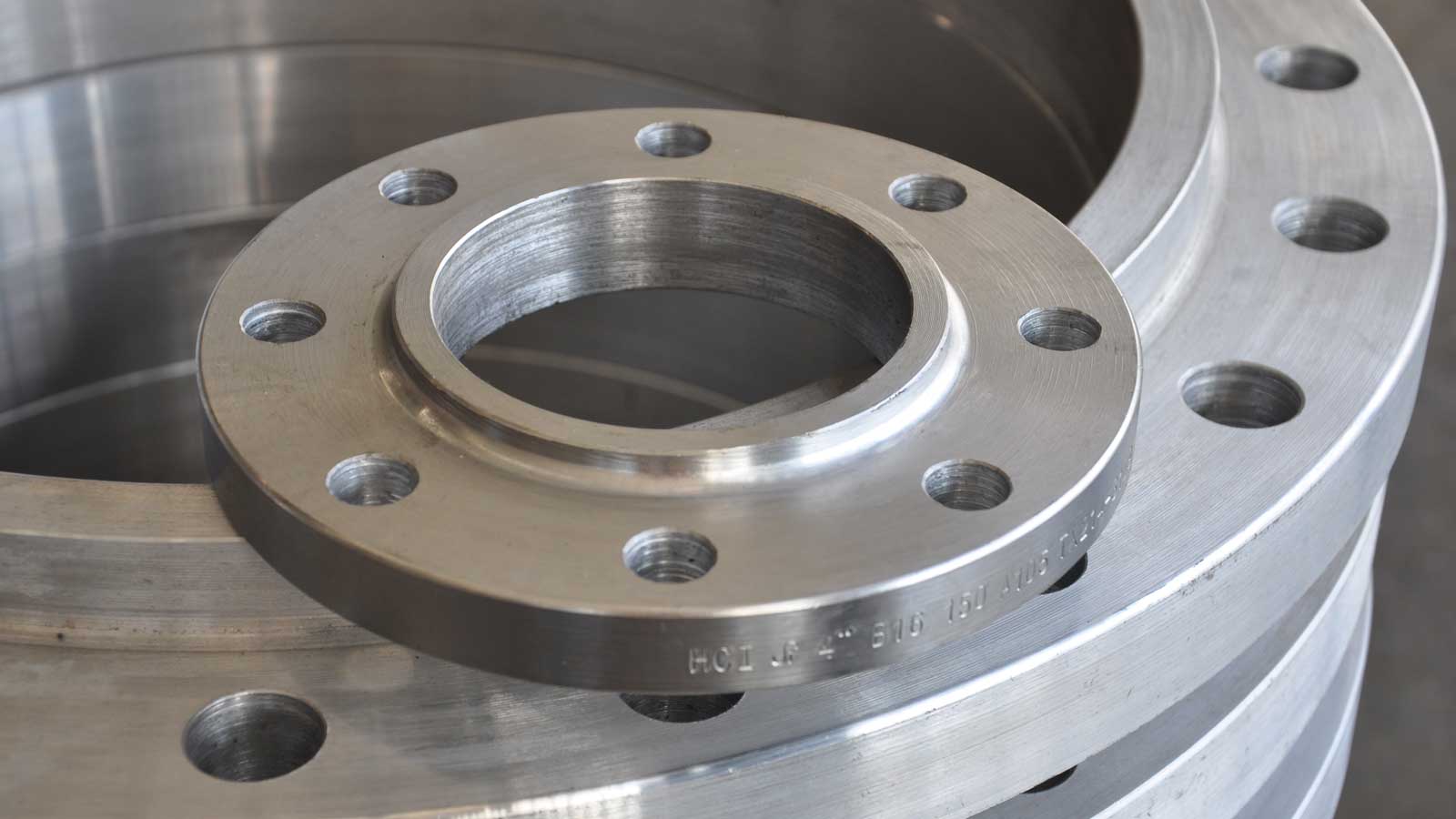

Carbon & Alloy Steel
Carbon & Alloy Steel flangesRange :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss
Carbon Steel : ASTM / ASME A 105 , ASTM / ASME A 350 LF 2 .
Alloy Steel :
ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91

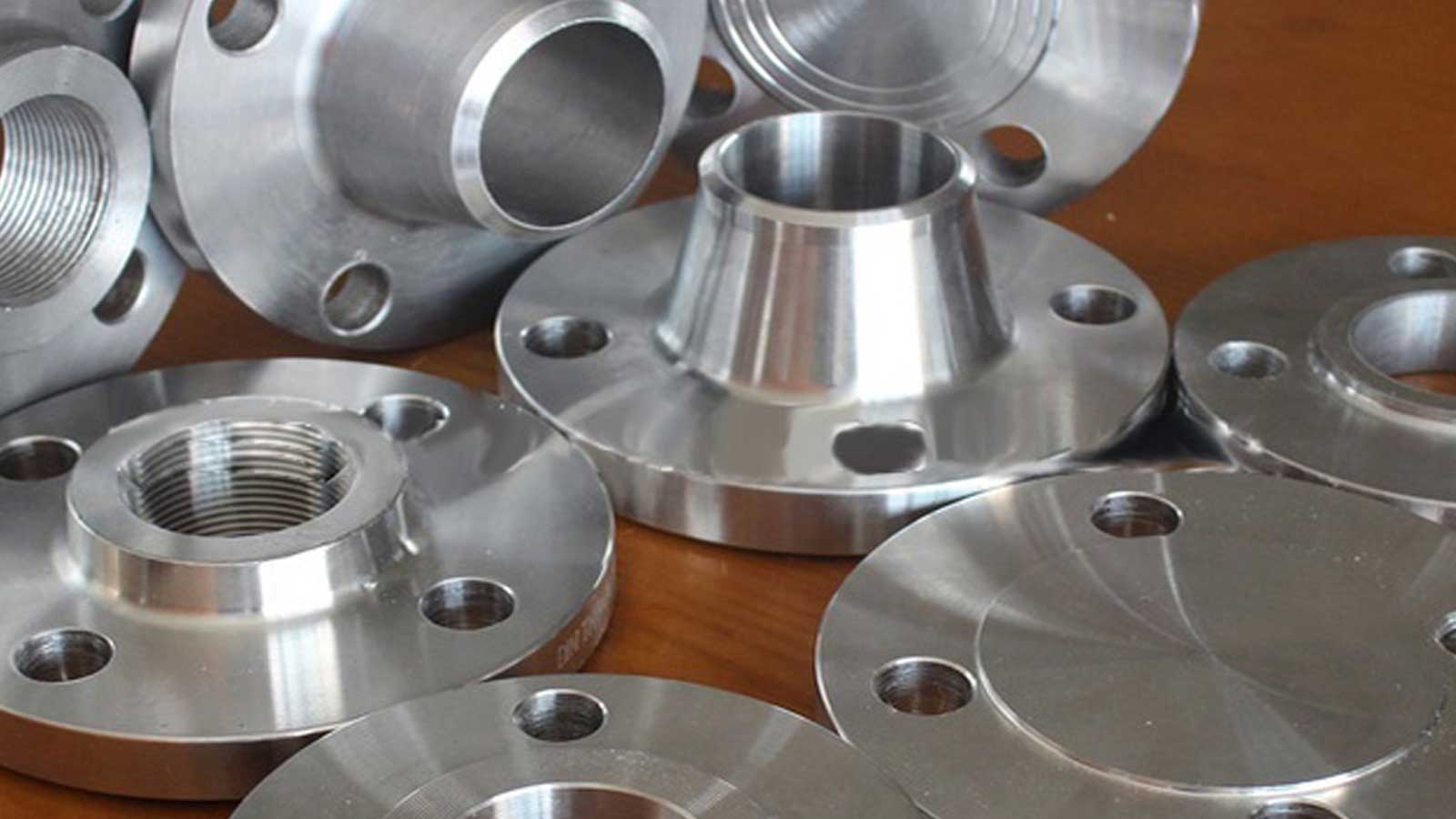

Nickel & Copper Alloy
Nickel & Copper Alloy flangesRange :
15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Form :
Slip On , Socket Weld , Blind , Lapped , Screwed , Weld Neck , Reducing , Spectacle ,Slip On Boss , Plate , Plate Blank , Screwed Boss
Nickel Alloy :
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 ( INCONEL 601 ) , UNS 6625 (INCONEL 625) ,UNS 10276 ( HASTELLOY C 276)
ASTM / ASME SB 160 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Copper Alloy :
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600 , 71500 , C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
ASTM / ASME SB 152 UNS NO C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200
Hastelloy
Hastelloy flangesGrades :Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Size :1/2"NB to 12"NB
Standard :ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Inconel
Inconel flangesGrades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Size : 1/2 inch - 48 inch (15mm - 1200mm)
Standard :ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features :
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Incoloy
Incoloy flangesGrades :Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Flanges Grade :ASTM A 182 F 304/L; 316/L; 317/L; 309; 310; 321; 347; 904L.
Type :SORF, BLRF, WNRF, SOLJ
Class :50 To 3000
Flanges Range :DN15 Upto DN1800 IN 150 LBS, 300 LBS, 400 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS / TABLE 2.5, TABLE 6, TABLE 10, TABLE 16, TABLE 25, TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Excellent finish
Monel
Monel flangesGrades :Monel 400, Monel k500
Range :1/2" NB to 60" NB
Types :Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features:
Durability
Corrosion resistance
Dimensional accuracy
High strength
Chemical resistance
Excellent finish
Titanium
Titanium flangesSpecifications
1. Material:Titanium.
2. Grade:Gr2, Gr5, Gr7, Gr9.
3. Standards:DIN,ASTM,BS.
4.Application:Bicycles,Motors,Chemicals.
Description
Standards:DIN,ASTM,BS.
Strength :Superior Quality, Fast delivery, Competitive price as well as humanized after-sales service.
Features :Low density, rustless, good antiwear property, high strength.
Size:Set the size according to the customers' requirements.

Element Composition,%
Gr2 Gr5 Gr7 Gr9 Gr11 Gr12
N max 0.03; 0.05 0.03 0.03 0.03 0.03
C max 0.08 0.08 0.08 0.08 0.08 0.08
H max 0.015 0.015 0.015 0.015 0.015 0.015
Fe max 0.30 0.40 0.50 0.25; 0.20 0.30
O max 0.25 0.20 0.25 0.15 0.18 0.25
Al max 5.5~6.75 2.5~3.5
V max 3.5~4.5 2.0~3.0
Pd max 0.12~0.25 0.12~0.25

Grade Tensile strength(min) Yeild strength(min) Elongation(%)
ksi MPa ksi MPa
Grade1 35 240 20 138 24
Grade2 50 345 40 275 20
Grade3 65 450 55 380 18
Grade5 130 895 120 828 10
Grade7 50 345 40 275 20
Grade9 90 620 70 438 15
Grade12 70 438 50 345 18
